Description

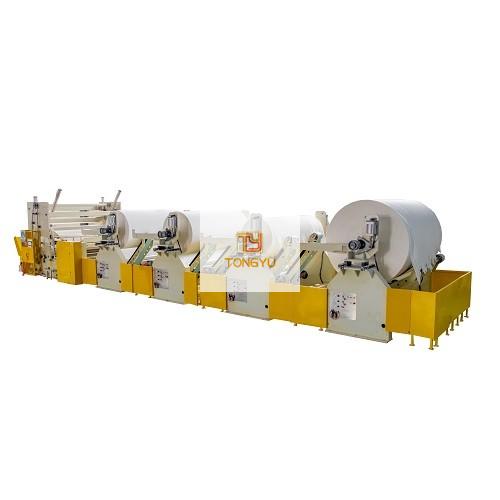

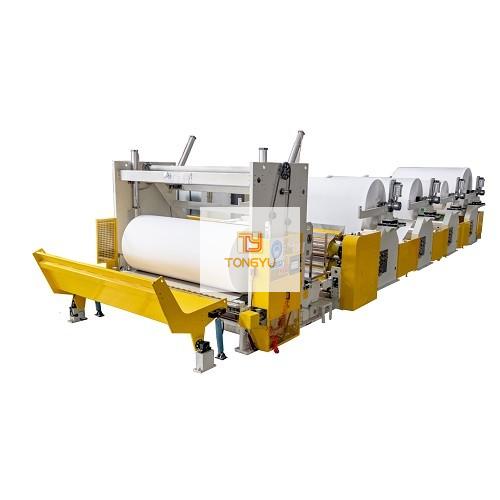

| FQA1000-1200 High Speed Jumbo Roll Slitter | ||||
| Machine Model | 3000 | 3600 | 4000 | 4300 |
| Width of Parent Roll | 2950 | 3550 | 3950 | 4250 |
| Working Speed | 1000m/min | |||
| Dia. of Finished Roll | ≤Φ1500(Other size to order) | |||
| Dia. of Parent Roll | Φ2000/Φ2500/Φ3000 | |||
| Slitting Width | Min 80mm, Max to Jumbo Roll Width | |||
| Rewinding System | Pneumatic synchronous winding | |||
| Slitting System | Imported slitting knives | |||
| Roll Discharger | Auto change roll + hydraulic discharge | |||
| Programmable Controller | Motion control system | |||
| Stop Mode | By diameter or length | |||
| Unwinder | 1-4ply(customized) | |||
| Motive Power | Individual inverter to regulate speed 120KW (4 unwinders+sealing machine) | |||
| Option | ||||
| Embossing Device | Steel to rubber, steel to steel | |||
| Lamination | Point to point, decorative embossing | |||
| Cream Device | Cream on the double-side | |||
| *Can slit interleaving paper of woman sanitary napkin | ||||
